ZÜNDAPP
Z 300
More comfort

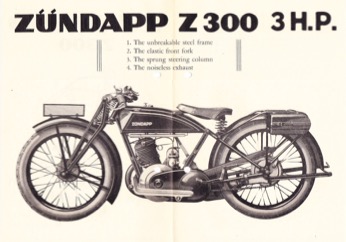

ZÜNDAPP Z 300 3H.P.
1. The unbreakable steel frame
2. The elastic front fork
3. The sprung steering column
4. The noiseless exhaust
) )
DtfODEL Z 300
is a first-class, powerful, speedy Touring machine, which satisfies all demands. The new frame consists of drop forged steel parts. It is therefore highly elastic and unbreakable. The Z300 is extremely easily steered. The engine is so powerful that changing of gear is scarcely necessary. The noiseless exhaust does not impair power so that 55 m. p. h. can be attained and hills climbed effortlessly.
Technical Details
Engine: valve-less, two-stroke. A. C. U. rating, 3 H. P.
Carburettor : Double lever Amac with air filter or B.&B.
Ignition: Stationary high tension magneto with adjustable spark
Lubrication: Automatic Oil regulator with safety valve
Gears: Three speed gear with kick- starter and clutch, free-wheel and shock-absorber
Transmission: All chain
Frame : Drop – forged, double frame, tension – free screwed (German Patent)
Front Fork: Drop-forged profile steel fork with special elastic spring and adjustable shock absorbers
Flandle Bar: Adjustable Gazda spring handle-bars
Wheels: International C. C. I. Rim with Ballon Cord Tyre 26″x2.85″
Brakes: Front and back wheel internal expanding brakes. Hand brake operating on the front wheel and foot brake on the back wheel
Tank: Patented safety tank with specially large opening for filling and quick stopper
Saddle: Elastic Spring saddle. Seat sprung laterally and vertically
Food-Rests: Strong and comfortable
Colour: Black
Measurements : Weight ready to drive about 230 lbs., length 6′ 10”, heigth 3′ 7″, overall width 33”, height of saddle from ground 30″
Performance: Up to 67 m.p.h.
Consumption : 80 miles to a gallon petrol, about Ta pint oil to 100 miles
Equipment: Complete set of tools, pump and tyre repair outfit
Z Ü N D A P P G. M. B. H„ A[ü R N B E R G
Berlin/ Hamburg / Cologne / Munich
l>. M. 0903a 0139
