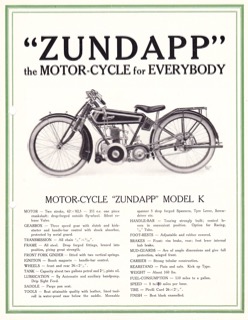

“ZUNDAPP”
the MOTOR-CYCLE for EVERYBODY
Mbg
MOTOR-CYCLE “ZUNDAPP” MODEL K
MOTOR — Two stroke, 62×82,5 — 211 c.c. one piece crankshaft; drop-forged outside fly-wheel. Silent release Valve.
GEARBOX — Three speed gear with clutch and kick- starter and handle-bar control with shock absorber, protected by metal guard.
TRANSMISSION – All chain 72″x5/16″.
FRAME — All steel. Drop forged fittings, brazed into position, giving great strength.
FRONT FORK GINDER — fitted with two vertical springs.
IGNITION — Bosch magneto — handle-bar control.
WHEELS — front and rear 26×2 X “.
TANK — Capacity about two gallons petrol and 23/-tpints oil.
LUBRICATION — By Automatic and auxiliary handpump. Drip Sight Feed.
SADDLE — Parge pan seat.
TOOLS — Best attainable quality with leather, lined tool- roll in water-proof case below the saddle. Moveable
spanner 5 drop forged Spanners, Tyre Lever, Screwdriver etc.
HANDLE-BAR — Touring strongly built; control levers in convenient position. Option for Racing, T/g” Tube.
FOOT-RESTS — Adjustable and rubber covered.
BRAKES — Front: rim brake, rear; foot lever internal hub brake.
MUD-GUARDS — Are of ample dimensions and give full protection, winged front.
CARRIER — Strong tubular construction.
REARSTAND — Plain and safe. Kick up Type.
WEIGHT — About 160 lbs.
FUEL-CONSUMPTION — 110 miles to a gallon.
SPEED — 5 to 4f0 miles per hour.
TIRE — Pirelli Cord 26×21/2’/.
FINISH — Best black enamelled.

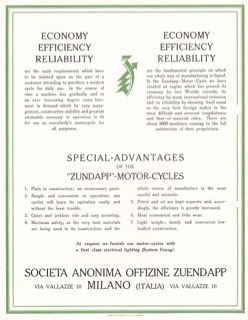

ECONOMY
EFFICIENCY
RELIABILITY
are the main requirements which have to be insisted upon on the part of a customer intending to purchase a modern cycle for daily use. In the course of time a machine has gradually and to an ever increasing degree come foremost in demand which by easy management, constructive stability and greatest attainable economy in operation is fit for use as everybody’s motorcycle for all purposes.
ECONOMY
EFFICIENCY
RELIABILITY
are the fundamental principle on which our whole way of manufacturing is based. In the Zundapp – Motor – Cycle we have created an engine which has proved its economy by two Worlds records, its efficiency by many international victories, and its reliability by showing itself equal to the very best foreign makes in the most difficult and severest longdistance and best-of-material rides. There are about 9000 machines running to the full satisfaction of their proprietors.
SPECIAL-ADVANTAGES
OF THE
“ZUNDAPP”-MOTOR-CYCLES
1. Plain in construction; no unnecessary parts.
2. Simple and convenient in operation; any cyclist will learn its operation easily and without the least trouble.
3. Quiet and jerkless ride and easy mounting.
4. Maximum safety, as the very best materials are being used in its construction and the
whole course of manufacture is the most careful and accurate.
5. Petrol and oil are kept separate and, accordingly, the efficiency is greatly increased.
6. Most economical and little wear.
7. Light weight; handy and convenient lowbodied construction.
At request we furnish our motor-cycles with a first class electrical lighting (System Fenag).
SOCIETA ANONIMA OFFIZINE ZUENDAPP
VIA VALLAZZE 10
MILANO (ITALIA)
VIA VALLAZZE 10
